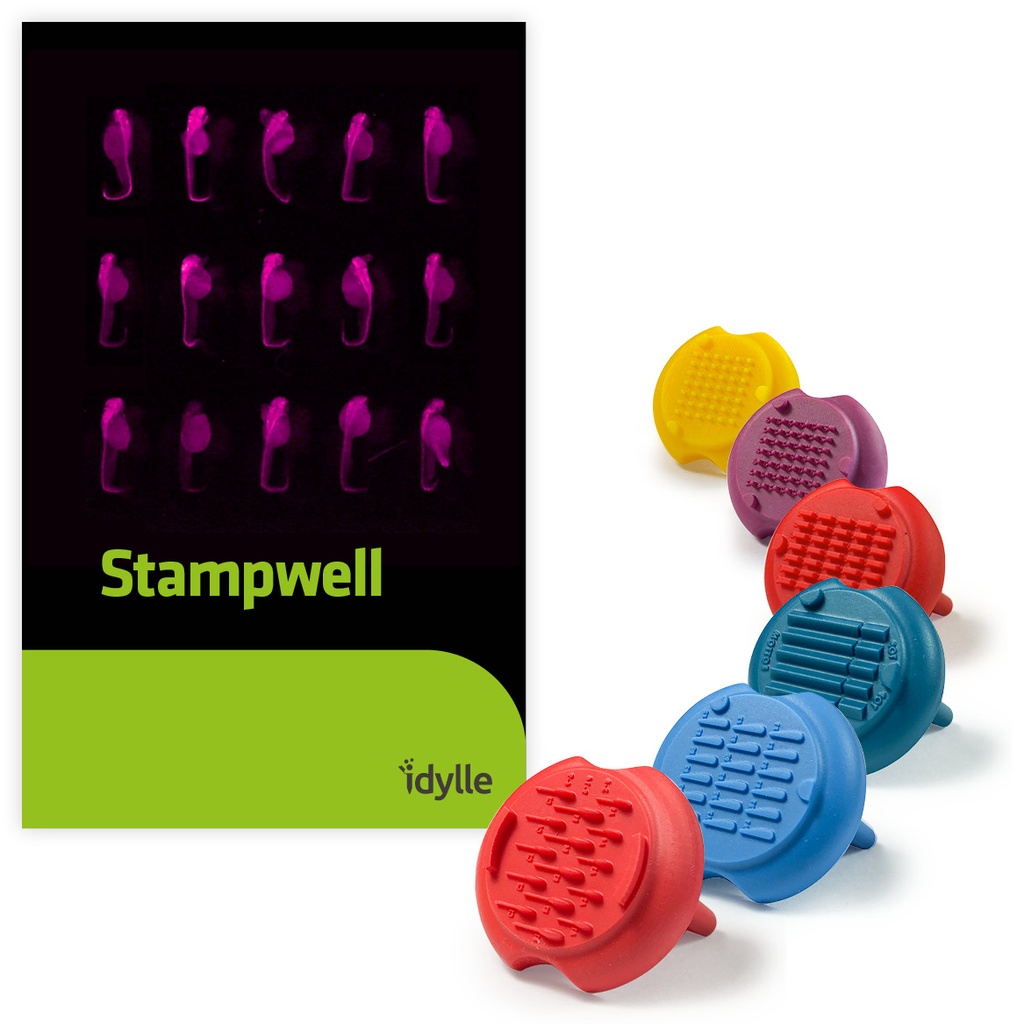

Stampwell stamps imprint arrays of wells in hydrogels in just one time. Nothing more to do than load your samples into the wells and image. The Stampwell shapes have been optimized for the imaging of fish embryos or larvae up to 20 dpf.

Save time: no need to manually position your samples individually. Fish embryos/larvae will self-position in the wells.

Boost your assay reproducibility: once loaded in the wells, your samples are perfectly positioned, aligned and located on a similar focal plane.

Open system: direct access to embryos/larvae for adding external compounds (i.e. drug screening).

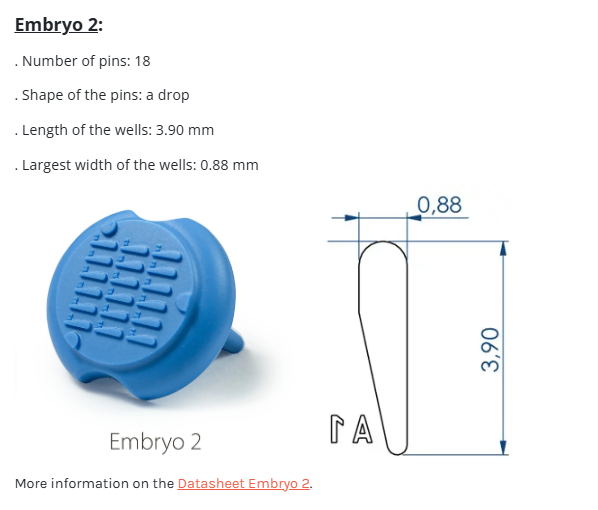

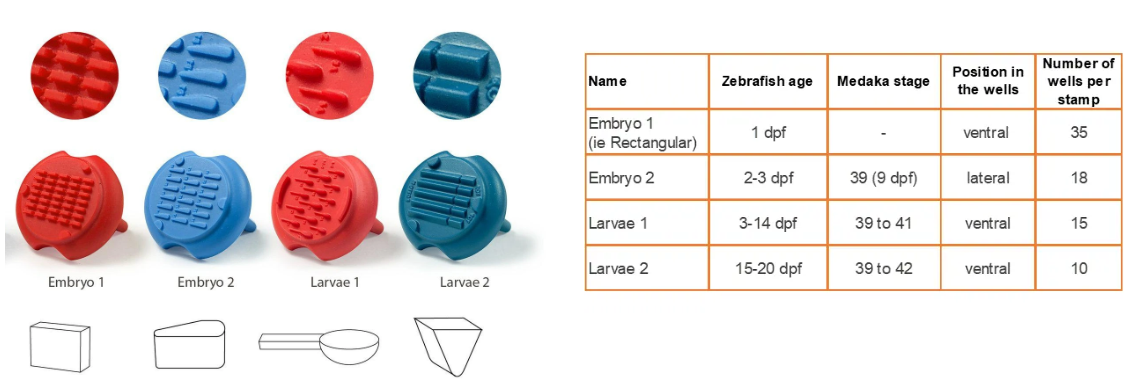

4 different shapes of Stampwell Z

depending on the size and orientation of your fish embryos.







Plate compatibility:

The stamp has a total diameter of 26 mm. It can be used in:

• 35 mm circular petri dishes with an aperture of at least 22 mm
• any larger vessel (i.e. 6-well plates)
